Key Takeaways
- Higher bandwidth and more channels generally improve diagnostic precision but come at a higher cost.
- Portability varies significantly; handheld models are ideal for on-the-go use, while bench-style scopes suit stationary setups.
- Integrated multimeters and signal generators add value but may increase complexity for new users.
- Display quality and user interface can influence ease of use, especially on complex signals or in tight spaces.
- Pricing ranges widely; understanding your specific diagnostic needs helps avoid overspending on unnecessary features.
| automotive oscilloscope for diagnostic | Channels | Sampling Rate | Bandwidth |
|---|---|---|---|
| 3 in 1 Handheld Oscilloscope A | 2 | 280MSa/s | 50MHz |
| Hantek 1008C+HT201+HT30A+HT307 | 8 | 2.4MSa/s | — |
| FNIRSI DSO-510 Handheld Oscill | — | 48 MS/s | 10 MHz |
| Hantek 1008C+ 8CH Automotive D | 8 | — | 100 kHz |
| Hantek 1008C PC USB 8-Channel | 8 | 2.4MSa/s | — |
| FNIRSI 2C53T Upgraded Handheld | — | 250 MS/s | 50 MHz |
| Hantek 1008B 8-Channel Automot | 8 | — | — |
| FNIRSI DSO152 Handheld Oscillo | — | 2.5 MS/s | 200 KHz |
| TOPDON Phoenix Scope | 4 | — | — |
| FNIRSI 2C53P Handheld Oscillos | 2 | 250 MS/s | 50 MHz |
| Micsig Digital Automotive Tabl | 4 | 1 GSa/s | 100 MHz |
More Details on Our Top Picks
3 in 1 Handheld Oscilloscope Automotive Dual Channel 50MHz with Digital Multimeter and Signal Generator
This multi-functional device stands out for combining an oscilloscope, multimeter, and signal generator into one portable unit. Its high sampling rate (280MSa/s) and 50MHz bandwidth enable detailed waveform analysis, making it suitable for both automotive troubleshooting and electronic projects. Compared with the FNIRSI DSO-510, it offers a broader feature set and greater measurement flexibility, though its complexity might require some reading to master all functions. The Type-C interface supports quick charging and data transfer, adding to its convenience. However, the device’s multiple features come with a steeper learning curve and higher power consumption in high-speed mode. Limited to 50MHz bandwidth, it is less ideal for high-frequency signal analysis but excels in versatile automotive diagnostics.
Pros:- Combines oscilloscope, multimeter, and signal generator in one device
- High sampling rate and bandwidth for detailed waveform capture
- Type-C port facilitates fast charging and data transfer
- Automatic waveform recognition enhances measurement speed
Cons:- Complex interface may require manual reading for proper operation
- Higher power consumption during high-speed mode
- Limited to 50MHz bandwidth, not suitable for very high-frequency signals
Best for: Automotive technicians and electronics hobbyists who need a multi-purpose tool for diagnostics and waveform analysis
Not ideal for: Beginners or users seeking a simple, dedicated automotive oscilloscope without additional functions
- Channels:2
- Bandwidth:50MHz
- Sampling Rate:280MSa/s
- Measurement Range:Resistance, capacitance, continuity, diodes, current
- Display Storage Depth:128K
- Power Supply:Type-C charging port
Our verdict“This pick suits experienced users needing a versatile, portable diagnostic tool with multiple functions, accepting some complexity for broader capabilities.”

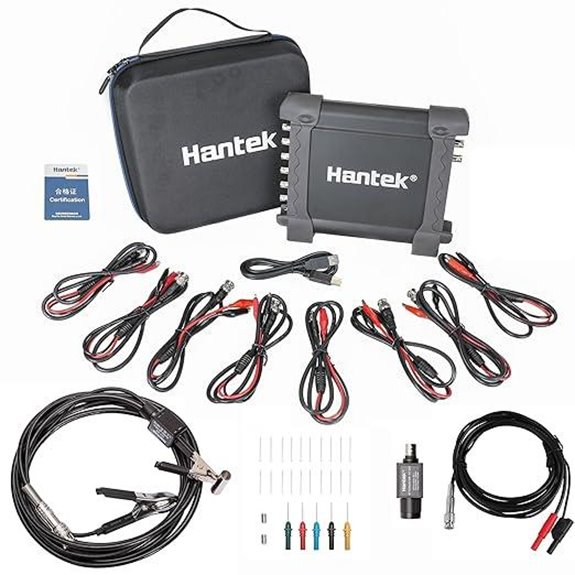

Hantek 1008C+HT201+HT30A+HT307 PC USB 8-Channel Automotive Diagnostic Digital Oscilloscope
This 8-channel scope excels for automotive diagnostics, offering a comprehensive suite of functions including signal simulation and waveform recording. Its 12-bit resolution and 2.4MSa/s sampling rate deliver precise measurements, comparable with the Hantek 1008C for general use, but with added diagnostic features. Its USB interface allows seamless connection to Windows PCs, making it ideal for mobile workshops or dedicated diagnostic stations. The setup process can be complex for less experienced users, and it’s limited to Windows OS, unlike some plug-and-play options. While it supports a range of automotive functions like ignition and sensor testing, it isn’t suited for high-frequency applications due to its 250KHz frequency range.
Pros:- Supports a wide range of automotive diagnostic functions
- Multiple channels and high-resolution measurements
- USB connectivity with compatible PC software for analysis
- Includes signal simulation capabilities
Cons:- Limited to Windows OS and requires PC setup
- Complex configuration may overwhelm beginners
- Not suitable for high-frequency signal analysis above 250KHz
Best for: Professional automotive technicians and electronics specialists requiring detailed diagnostics and waveform analysis
Not ideal for: Hobbyists or users without a Windows PC who prefer standalone or simpler devices
- Channels:8
- Resolution:12 bits
- Memory Depth:4K
- Sampling Rate:2.4MSa/s
- Frequency Range:0-250KHz
- Interface:USB 2.0
Our verdict“This scope is geared toward professionals needing detailed diagnostics, with extensive features but a steeper learning curve and PC dependency.”
FNIRSI DSO-510 Handheld Oscilloscope and Signal Generator, 10 MHz Bandwidth, 2.8-inch TFT Display, Portable Automotive Oscilloscope
The FNIRSI DSO-510 offers a compact, lightweight design perfect for on-the-go diagnostics, especially in tight spaces. Its 10 MHz bandwidth and 48 MS/s sampling rate provide sufficient detail for low-frequency automotive signals, making it a good choice for basic electronic troubleshooting. When compared to the 3-in-1 handheld, it provides a dedicated oscilloscope experience without extra features, simplifying operation. The small 2.8-inch display can be limiting for detailed waveform analysis, and its 10 MHz bandwidth restricts use in high-frequency applications. Its battery life isn’t specified, which may impact extended field use. Overall, this device is ideal for quick checks rather than in-depth diagnostics.
Pros:- Compact, lightweight, and portable for field use
- Supports multiple waveforms with output up to 50 KHz
- Easy to operate with auto measurements and waveform saving
Cons:- Limited bandwidth of 10 MHz restricts high-frequency diagnostics
- Small display size hampers detailed analysis
- Battery life details are not provided, limiting long-term use
Best for: Automotive hobbyists and technicians needing a portable scope for simple, quick testing
Not ideal for: Professionals requiring detailed waveform analysis or high-frequency diagnostics
- Bandwidth:10 MHz
- Sampling Rate:48 MS/s
- Display:2.8-inch TFT
- Waveform Output Frequency:up to 50 KHz
- Voltage Measurement:up to 400 V
- Battery:1000mAh lithium-ion
Our verdict“This scope is best for field technicians or hobbyists who need quick, basic diagnostics without complex setup.”
Hantek 1008C+ 8CH Automotive Diagnostic PC Oscilloscope
The Hantek 1008C+ is tailored for automotive diagnostics, offering over 80 functions including ignition, sensor testing, and circuit analysis. Its 100 kHz bandwidth limits its use to lower-frequency signals but still covers many automotive signals such as ignition pulses and sensor outputs. Its USB connection makes data transfer straightforward, and waveform recording supports long-term testing, similar to the 8-channel scope in the same range. Yet, its lower bandwidth means it’s less suitable for high-frequency electronic signals, and it lacks standalone operation, requiring a PC. It’s a good choice for technicians focused on automotive circuits rather than high-speed electronics or complex waveform analysis.
Pros:- Supports extensive automotive diagnostic functions
- USB connectivity simplifies data transfer
- Waveform recording and report generation
- Multiple diagnostic features including ignition and sensor tests
Cons:- Limited bandwidth restricts high-frequency signal testing
- No battery or portable power options
- Requires familiarity with automotive diagnostics systems
Best for: Automotive service shops and technicians focused on vehicle electronics and sensor diagnostics
Not ideal for: Hobbyists or users needing high-frequency or standalone oscilloscopes
- Channels:8
- Bandwidth:100 kHz
- Sample Rate:2.4MSa/s
- Connectivity:USB 2.0
- Features:Video help, diagnostic report, waveform recording
Our verdict“Ideal for professional automotive diagnostics focused on vehicle electronics, with extensive features but limited for high-frequency analysis.”

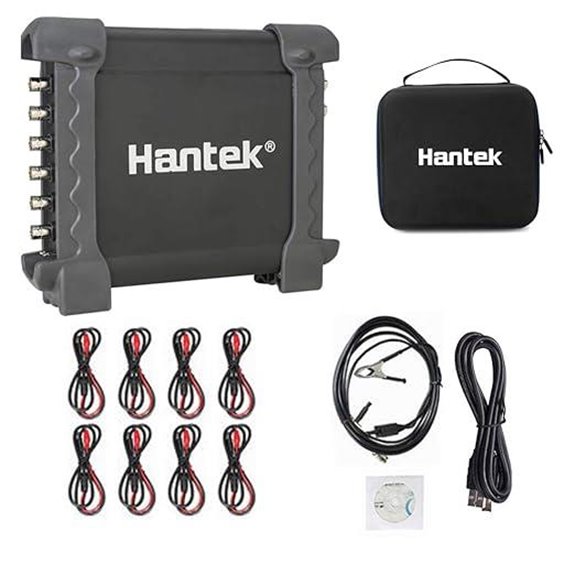

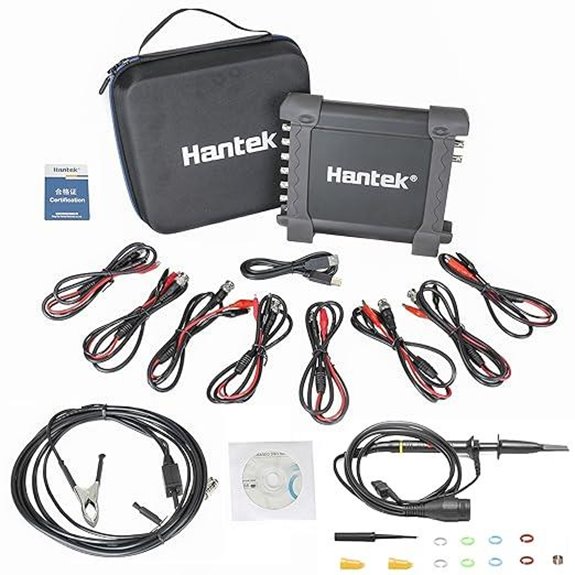

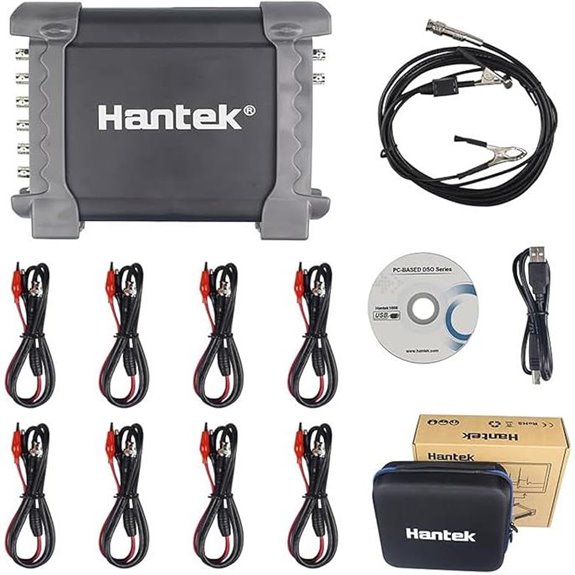

Hantek 1008C PC USB 8-Channel Automotive Diagnostic Digital Oscilloscope
The Hantek 1008C is a solid choice for users who want a detailed, multi-channel scope for automotive and electronics troubleshooting. Its 12-bit resolution and 2.4MSa/s sampling rate ensure accurate, real-time measurements, making it comparable to other high-resolution scopes like the 1008C+. The inclusion of a programmable signal generator expands its capabilities for testing and simulation. Its reliance on Windows PC software makes it less portable and more complex for beginners, but it excels in environments where precise data analysis is required. The absence of standalone power options means it’s best suited for fixed setups rather than fieldwork. Its frequency range of 250KHz limits high-frequency applications but suits most vehicle electronic signals.
Pros:- High resolution and real-time sampling accuracy
- Includes programmable signal generator
- Supports automotive and general electronics testing
- Multiple channels for complex signal analysis
Cons:- Limited to Windows OS, no Mac/Linux support
- Requires familiarity with PC software and setup
- No standalone operation, reliant on PC connection
Best for: Electronics enthusiasts and professionals needing detailed, multi-channel diagnostics with simulation capabilities
Not ideal for: Users without Windows PCs or those seeking portable, standalone scopes
- Channels:8
- Resolution:12 bits
- Memory Depth:4K
- Sampling Rate:2.4MSa/s
- Frequency Range:0-250KHz
- Connectivity:USB 2.0
Our verdict“This scope suits experienced users requiring detailed measurements and simulation, especially in a PC-connected environment, despite its complexity.”
FNIRSI 2C53T Upgraded Handheld Oscilloscope, 50MHz Bandwidth, 3-in-1 Digital Multimeter with DDS Generator
This device excels for users who need a compact, multi-purpose tool that combines oscilloscope, multimeter, and signal generator functions. Compared with the FNIRSI DSO152, it offers a higher bandwidth of 50MHz and waveform storage capabilities, making it more versatile for field diagnostics. Its integrated features streamline workflows, but the 50MHz bandwidth limits high-frequency testing and the small display hampers detailed analysis. The built-in battery supports up to 6 hours of use, suitable for on-the-go diagnostics, though it might fall short during extended sessions.
Pros:- Multi-function device combining oscilloscope, multimeter, and signal generator
- Supports waveform storage and export via Type-C
- Built-in high-voltage protection and portable design
Cons:- Limited to 50 MHz bandwidth, not suited for high-frequency applications
- Battery life of up to 6 hours may be insufficient for prolonged use
- Small display size can make detailed measurements challenging
Best for: Technicians and hobbyists needing an all-in-one portable testing device for basic electronics and automotive diagnostics
Not ideal for: Professionals requiring high-frequency precision or extended diagnostic sessions without recharging
- Bandwidth:50 MHz
- Sampling Rate:250 MS/s
- Record Depth:1 Kpts
- Max Voltage:400 V
- Display:2.8 inch LCD
- Battery:3000 mAh, up to 6 hours
Our verdict“This pick makes the most sense for field technicians and hobbyists seeking a versatile, portable diagnostic tool with moderate frequency capabilities.”
Hantek 1008B 8-Channel Automotive Diagnostic Oscilloscope
The Hantek 1008B stands out for professionals performing detailed vehicle diagnostics, offering 8 channels that allow simultaneous testing of multiple sensors and circuits. Unlike the FNIRSI 2C53T, which is more versatile but limited to general electronics, this scope provides extensive automotive-specific features like screenshot capture and report printing, making it ideal for comprehensive diagnostic workflows. Its complex interface may require training, but for those focused solely on vehicle diagnostics, it delivers precise and extensive data collection.
Pros:- Supports a wide range of automotive diagnostic functions
- Allows long-term waveform recording and data saving
- Includes video help for troubleshooting
Cons:- Complex interface may require training to use effectively
- Limited to automotive diagnostics, not suitable for general electronics
- No mention of portability, likely stationary setup
Best for: Automotive technicians needing multi-channel testing and detailed data recording for vehicle systems
Not ideal for: Hobbyists or general electronics enthusiasts who do not focus solely on automotive diagnostics or prefer simpler interfaces
- Channels:8
- Functionality:Automotive diagnostics, waveform recording, signal simulation
- Connectivity:USB
- Additional features:Screenshot, report printing
Our verdict“This scope suits dedicated automotive professionals who need multi-channel, detailed vehicle diagnostics with extensive data capabilities.”
FNIRSI DSO152 Handheld Oscilloscope – 2.8″ TFT Digital, 200KHz Bandwidth, 2.5MS/s High Sampling Rate, Portable Pocket Oscilloscope
The FNIRSI DSO152 is a compact scope that offers portability and ease of use for basic diagnostics or educational purposes. Its 200 KHz bandwidth and 2.5 MS/s sampling rate are sufficient for simple waveform monitoring, making it a suitable choice over larger, more complex scopes like the Hantek 1008B when portability is prioritized. However, the limited bandwidth restricts high-frequency testing, and the small display can challenge detailed analysis. This scope is best for beginners or quick field checks rather than detailed automotive diagnostics.
Pros:- Compact and portable for on-the-go use
- High sampling rate for accurate waveform capture
- Supports multiple trigger modes for versatile measurements
Cons:- Limited to 200 KHz bandwidth, not suitable for high-frequency signals
- Small display size may hinder detailed analysis
- Basic features lack advanced measurement tools
Best for: Students, hobbyists, or field technicians needing a lightweight, straightforward scope for basic troubleshooting
Not ideal for: Professionals requiring high-frequency measurements or detailed automotive diagnostic features
- Bandwidth:200 KHz
- Sampling Rate:2.5 MS/s
- Voltage Measurement:up to 800 VPP
- Display:2.8-inch TFT LCD
- Battery:1000 mAh
Our verdict“Ideal for beginners and quick field diagnostics, but not for high-frequency or in-depth automotive testing.”
TOPDON Phoenix Scope, 4 Channel Oscilloscope with Accessories for Automotive Diagnostics
The TOPDON Phoenix Scope distinguishes itself by integrating seamlessly with Phoenix diagnostic tools, offering 4 channels and advanced auto measurements. This makes it particularly appealing for automotive technicians who rely on Phoenix systems for comprehensive diagnostics. Unlike standalone scopes, its automatic measurements and fast waveform storage streamline troubleshooting, though it’s limited to use with Phoenix tools. The interface is user-friendly once familiar, but the lack of portable features and battery life details might limit field use.
Pros:- Supports advanced waveform analysis and recording
- Works seamlessly with Phoenix diagnostic tools
- Offers comprehensive auto measurements and trigger functions
Cons:- Limited to Phoenix diagnostic tools, not standalone
- No mention of portable features or battery life
- Features may be complex for beginners
Best for: Automotive professionals working within the Phoenix diagnostic ecosystem needing advanced signal analysis
Not ideal for: Technicians seeking a standalone scope or portable solution without Phoenix integration
- Memory Depth:50M
- Channels:4
- Compatibility:Phoenix Max/Smart/Elite
- Auto Measurements:23 types
Our verdict“This scope is best for dedicated Phoenix users who need integrated, automated automotive signal analysis with extensive measurement capabilities.”

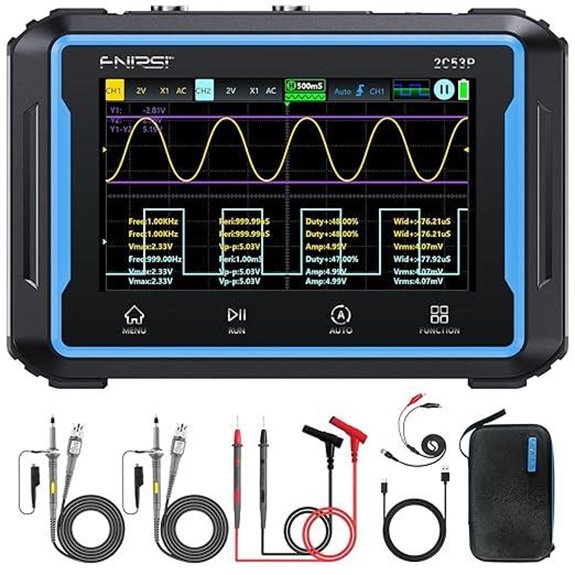

FNIRSI 2C53P Handheld Oscilloscope Multimeter with DDS Signal Generator, 2CH, 50MHz Bandwidth, 19999 Counts, 250MS/s, 4.3-inch Touch Screen
The FNIRSI 2C53P combines a 2-channel oscilloscope, multimeter, and DDS signal generator into a single device with a high-resolution 4.3-inch touch screen. Its 50MHz bandwidth and 250MS/s sampling rate make it suitable for detailed electronic diagnostics, and the large display enhances usability over smaller scopes like the DSO152. While its portability and long battery life are advantages, the 50MHz bandwidth limits its use for high-frequency automotive signals. Its complex interface may also present a learning curve for beginners.
Pros:- Combines oscilloscope, multimeter, and signal generator in one device
- High-resolution 4.3-inch touch screen for ease of use
- Long battery life supports extended field use
Cons:- Limited to 50 MHz bandwidth, not suitable for high-frequency signals
- Complex features may challenge beginners
- Battery life around 4 hours may require frequent recharging
Best for: Engineers and technicians needing portable, high-resolution signal analysis for electronic and automotive diagnostics
Not ideal for: Those requiring high-frequency automotive diagnostics above 50 MHz or simple troubleshooting
- Channels:2
- Bandwidth:50 MHz
- Counts:19999
- Sampling Rate:250 MS/s
- Display:4.3-inch IPS touch screen
- Battery Capacity:4000 mAh
Our verdict“Best suited for professionals needing portable, detailed electronic diagnostics with a high-quality display, despite bandwidth limitations.”

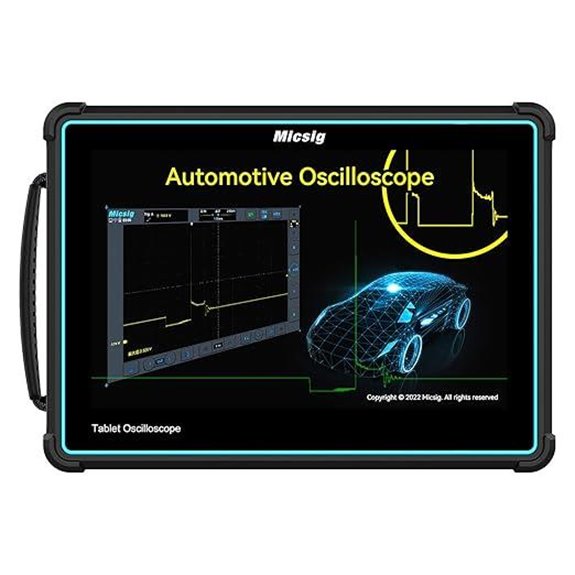

Micsig Digital Automotive Tablet Oscilloscope, 4 Channels, 10.1-Inch Touchscreen, 100MHz Bandwidth, 1GSa/s Sampling Rate, 110Mpts Memory
The Micsig ATO1004 stands out for its large, high-resolution touchscreen, which simplifies complex diagnostics—especially compared with smaller handheld models like FNIRSI DSO-510. Its 100 MHz bandwidth and 1 GSa/s sampling rate provide detailed waveform capture, making it suitable for analyzing sensors and communication signals in vehicles. The extended battery life of up to 5 hours and versatile connectivity options (Wi-Fi, HDMI, USB) make it a strong choice for in-field work, where power and flexibility are critical. However, its rich feature set introduces a learning curve, and battery performance can vary with intensive use. This pick makes the most sense for professional automotive technicians who need a portable, powerful device that’s easy to operate and highly connected.
Pros:- Large, high-resolution 10.1-inch touchscreen simplifies operation
- High bandwidth (100 MHz) and fast sampling rate (1 GSa/s) for detailed waveform analysis
- Long battery life supports extended diagnostic sessions
- Multiple connectivity options for versatile use in the field
Cons:- Complex features may require time to master, especially for beginners
- Battery life can fluctuate based on usage intensity
Best for: Professional automotive technicians needing a portable, high-performance diagnostic tool with a touchscreen interface.
Not ideal for: amateurs or hobbyists who prefer simpler, budget-friendly oscilloscopes, as the features may be overwhelming and the price higher.
- Channels:4
- Screen Size:10.1 inches
- Resolution:1280 x 800
- Bandwidth:100 MHz
- Sampling Rate:1 GSa/s
- Memory Depth:110 Mpts
- Battery:7.4V, 7500mAh
- Battery Life:up to 5 hours
- Connectivity:Wi-Fi, Type-C, LAN, HDMI, USB
Our verdict“This model is ideal for professional users who need a portable, feature-rich oscilloscope with excellent connectivity and display quality.”
How We Picked
I evaluated each product based on performance, usability, build quality, and value for automotive diagnostics. Priority was given to bandwidth, channel count, portability, and ease of use, since these directly impact diagnostic accuracy and workflow. We also considered durability, interface clarity, and additional features like multimeters or signal generators. Products were ranked to serve different user profiles, from beginners to professional technicians, ensuring that each pick offers a meaningful advantage within its category. The goal was to highlight options that balance capability with practicality, avoiding overly complex or underpowered models for typical diagnostic scenarios.Factors to Consider When Choosing Automotive Oscilloscope For Diagnostics
Choosing the right automotive oscilloscope involves understanding key factors that influence diagnostic effectiveness and workflow. The selection should align with your technical skill level, the types of vehicles or systems you work on, and whether portability or advanced features are more important. Being aware of common pitfalls, like prioritizing bandwidth over usability or ignoring connection options, can help prevent costly mistakes. Here are some essential considerations to guide your decision-making process.Bandwidth and Channel Count
Higher bandwidth allows the scope to capture faster electrical signals, which is vital for diagnosing modern vehicles with complex electronics. A 50MHz scope is often sufficient for most automotive work, but some applications benefit from 100MHz or higher. Channel count determines how many signals you can monitor simultaneously; more channels enable comprehensive diagnostics of interconnected sensors and modules. Balancing bandwidth and channels against your specific needs ensures you get a scope capable of handling current and future vehicle systems without overspending.
Portability and Size
Deciding between handheld, portable, and bench models depends on your workflow. Handheld scopes excel in on-the-road diagnostics or tight spaces, offering convenience but sometimes sacrificing advanced features or screen size. Larger, benchtop models provide more detailed displays and easier control but are less mobile. Consider how often you’ll need to move the scope around or work in different environments to make an informed choice that enhances productivity without compromising on necessary features.
Ease of Use and Interface
An intuitive interface reduces setup time and helps prevent errors, especially when diagnosing complex signals. Touchscreens, clear menus, and straightforward controls matter, particularly for less experienced users. Some models include dedicated automotive modes or auto-setup features that simplify operation. However, overly simplified interfaces might limit customization, so weigh ease of use against the ability to fine-tune measurements for advanced troubleshooting.
Additional Features
Extras like built-in multimeters, signal generators, and memory storage add significant value, especially for professional diagnostics. These features can streamline workflows but also increase device complexity and cost. When choosing, consider whether these tools are necessary for your typical tasks or if they risk cluttering a simple setup. Compatibility with automotive testing accessories and software integration are also worth checking to maximize versatility.
Budget and Long-term Value
Prices for automotive oscilloscopes vary widely, from affordable portable units to high-end professional instruments. It’s tempting to go for the cheapest option, but this can limit diagnostic capability or durability. Investing in a slightly more expensive model with better specs often pays off by reducing the need for upgrades or repairs. Evaluate your expected usage, repair volume, and future needs to find a balance between initial cost and long-term value, ensuring you get a tool that remains useful over time.
Frequently Asked Questions
Do I need a high-bandwidth oscilloscope for basic automotive diagnostics?
For most basic diagnostics, a scope with around 50MHz bandwidth is sufficient to view common sensor and actuator signals. Higher bandwidth models become more relevant when working on newer vehicles with high-speed CAN networks or complex electronic modules. Choosing a scope with extra bandwidth provides future-proofing but may not be necessary for routine repairs, so consider your typical vehicle model and diagnostic complexity before investing in high-bandwidth equipment.
Can I use a general-purpose oscilloscope for automotive diagnostics?
While general-purpose oscilloscopes can work in a pinch, automotive-specific models often include features tailored to vehicle systems, like automotive trigger modes, automotive test leads, and software compatibility. These enhancements make diagnostics faster and more reliable. Using a scope designed for automotive work reduces setup time and minimizes errors, especially in complex electrical environments. For serious diagnostics, dedicated automotive scopes are generally worth the extra investment.
Is portability more important than advanced features?
This depends on your workflow. If you frequently perform on-site diagnostics or work in tight spaces, portability can outweigh some advanced features. Conversely, if most diagnostics are performed in a shop setting, a larger, feature-rich scope provides better visibility and control. Assess how often you’ll need mobility versus detailed analysis, and choose a device that aligns with your typical work environment to maximize efficiency.
How important is a display size and quality on an automotive oscilloscope?
A clear, large display enhances signal visibility and allows for more precise interpretation of waveforms, especially when troubleshooting complex or subtle issues. Touchscreens and high-resolution screens improve navigation and control, reducing user fatigue. However, larger screens tend to increase device size and weight. Balancing display quality with portability and ergonomics ensures you can diagnose effectively without sacrificing convenience.
Should I prioritize additional features like multimeters or signal generators?
Adding multimeters or signal generators can streamline workflows by reducing the need for separate tools, but they also tend to increase complexity and cost. If your diagnostics regularly involve multiple measurements or testing scenarios, these features provide significant value. For simpler or occasional use, a basic scope may suffice, avoiding unnecessary expense. Consider your typical repair tasks to determine whether extra features justify the investment.
Conclusion
The best overall choice depends on your experience level and diagnostic needs. The TOPDON Phoenix Scope offers a balanced mix of user-friendliness and capability, making it ideal for technicians seeking reliability without complexity. For professionals demanding high bandwidth and multiple channels, the Micsig Automotive Tablet Oscilloscope delivers top-tier performance, though at a higher price. Budget-conscious users or DIY enthusiasts will find the FNIRSI DSO152 and similar handheld models provide essential features at a more accessible cost. For those who prioritize advanced features and larger displays, higher-end models like the Micsig Tablet Scope stand out. Ultimately, selecting the right tool hinges on matching features with your specific diagnostic workflow and vehicle types.
As an affiliate, we earn on qualifying purchases.Baby shower & registry season Picks
baby registry must-haves
