If you’re looking for the best OBD2 scanners with topology mapping for 2026, I recommend considering models like the XTOOL D9S PRO, D9 MAX, and TOPDON Phoenix XLink. These tools offer advanced diagnostic features, bidirectional control, and extensive system coverage. They visualize physical connections and help pinpoint faults quickly. If you want to explore the top options and find the perfect fit for your needs, keep going to discover the full list.
Key Takeaways
- Look for scanners with advanced topology mapping to visualize vehicle network connections and quickly identify faults.
- Prioritize models supporting broad vehicle coverage, including over 10,000 makes and latest 2026 models.
- Ensure compatibility with protocols like DoIP, CAN FD, and J2534 for comprehensive diagnostics.
- Choose devices with rugged build quality, long-lasting batteries, and user-friendly touchscreen interfaces.
- Consider scanners offering regular free software updates and cloud-based ECU reprogramming features.
| XTOOL D9S PRO Automotive Scan Tool with AutoAuth |  | Professional Grade | Protocol Support: DoIP, CAN FD, AutoAuth, OE protocols | Screen Size: 9.7-inch touchscreen | Battery Capacity: 6400 mAh | VIEW LATEST PRICE | See Our Full Breakdown |
| XTOOL D9 MAX Automotive Scan Tool with Reprogramming |  | Advanced Reprogramming | Protocol Support: FCA AutoAuth, DoIP, CAN FD, OE software | Screen Size: 9.7-inch touchscreen | Battery Capacity: 6400 mAh | VIEW LATEST PRICE | See Our Full Breakdown |
| TOPDON Phoenix XLink Scan Tool with ECU Coding |  | Tech-Savvy Choice | Protocol Support: CAN FD, DoIP, OE protocols | Screen Size: 10.1-inch display | Battery Capacity: 12600 mAh | VIEW LATEST PRICE | See Our Full Breakdown |
| XTOOL D8S 2025 Bidirectional Car Diagnostic Scanner |  | High-End Diagnostics | Protocol Support: DoIP, CAN FD, protocols supported via hardware | Screen Size: 8-inch touchscreen | Battery Capacity: 5000 mAh fast-charging | VIEW LATEST PRICE | See Our Full Breakdown |
| XTOOL IP900S All-System OBD2 Diagnostic Scanner |  | All-in-One Powerhouse | Protocol Support: CAN FD, DoIP, FCA AutoAuth, OE protocols | Screen Size: 8-inch touchscreen | Battery Capacity: 6400 mAh | VIEW LATEST PRICE | See Our Full Breakdown |
| XTOOL D9S Automotive Scanner with AutoAuth & Resets |  | Workshop Essential | Protocol Support: DoIP, CAN FD, OE protocols | Screen Size: 9.7-inch touchscreen | Battery Capacity: 6400 mAh | VIEW LATEST PRICE | See Our Full Breakdown |
| XTOOL IP919 Car Diagnostic Scanner with Resets |  | Feature-Rich Model | Protocol Support: CAN FD, DoIP, FCA AutoAuth, OE protocols | Screen Size: 10.1-inch sunlight-readable touchscreen | Battery Capacity: 12600 mAh | VIEW LATEST PRICE | See Our Full Breakdown |
| XTOOL IP919 PRO Car OBD2 ECU Scanner |  | Best for Pros | Protocol Support: CAN FD, DoIP, FCA AutoAuth, OE protocols | Screen Size: 10.1-inch sunlight-readable touchscreen | Battery Capacity: 6400 mAh | VIEW LATEST PRICE | See Our Full Breakdown |
| XTOOL D9 MAX Automotive Diagnostic Scanner |  | Full-System Coverage | Protocol Support: CAN FD, DoIP, FCA AutoAuth, OE protocols | Screen Size: 10.1-inch LCD touchscreen | Battery Capacity: 6400 mAh | VIEW LATEST PRICE | See Our Full Breakdown |
| LAUNCH X431 PRO5 J2534 Diagnostic Scanner |  | Fast & Reliable | Protocol Support: CAN FD, DoIP, FCA AutoAuth, OE protocols | Screen Size: 10.1-inch HD touchscreen | Battery Capacity: 6400 mAh | VIEW LATEST PRICE | See Our Full Breakdown |
| Launch X431 PRO3 APEX OBD2 Scanner with 10.1″ Screen |  | User-Friendly Design | Protocol Support: CAN FD, DoIP, OE protocols | Screen Size: 10.1-inch LCD touchscreen | Battery Capacity: 12600 mAh | VIEW LATEST PRICE | See Our Full Breakdown |
| LAUNCH X431 PRO3S+ Elite Diagnostic Scan Tool |  | Versatile Connectivity | Protocol Support: CAN FD, DoIP, OE protocols | Screen Size: 10.1-inch LCD touchscreen | Battery Capacity: 12600 mAh | VIEW LATEST PRICE | See Our Full Breakdown |
| VDIAGTOOL VD80 BT Car Diagnostic Scanner (8″) |  | Cost-Effective Option | Protocol Support: CAN FD, DoIP, FCA AutoAuth, OE protocols | Screen Size: 8-inch HD touchscreen | Battery Capacity: 6400 mAh | VIEW LATEST PRICE | See Our Full Breakdown |
| TOPDON Phoenix OBD2 Scanner with ECU & ADAS Compatibility |  | Top-tier Performance | Protocol Support: DoIP, CAN FD, OE protocols | Screen Size: 10.1-inch LCD touchscreen | Battery Capacity: 12600 mAh | VIEW LATEST PRICE | See Our Full Breakdown |
| Autel MaxiSys Ultra Scanner with MV108 & VCMI |  | Industry Leader | Protocol Support: CAN FD, DoIP, OE protocols | Screen Size: 12.9-inch TFT-LCD | Battery Capacity: 18000 mAh | VIEW LATEST PRICE | See Our Full Breakdown |
More Details on Our Top Picks
-
XTOOL D9 MAX AI-Assisted Professional Automotive Scan Tool, J2534 Reprogramming Tool, Bidirectional OBD2 Scanner with Topology Mapping, 45+ Relearns, ECU Coding, ADAS Calibration, FCA/DoIP/CAN FD
Professional Car Diagnostic Scanner for Technicians & Repair Shops with AI-Assistance: Upgrade of D9S PRO, built for advanced...
As an affiliate, we earn on qualifying purchases.

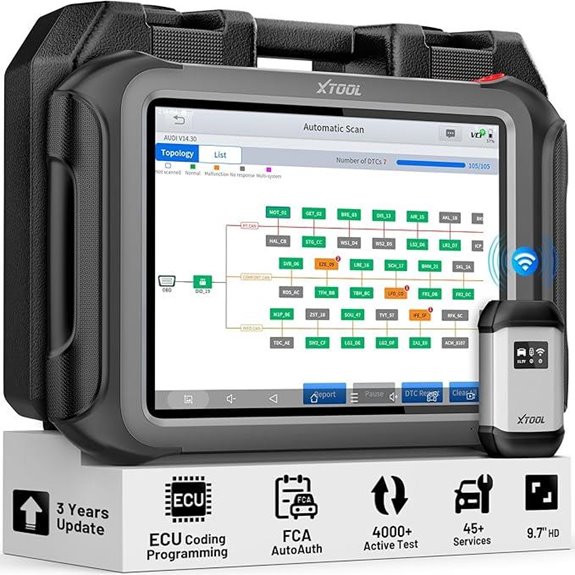

XTOOL D9S PRO Automotive Scan Tool with AutoAuth
If you’re a professional mechanic or serious DIY enthusiast, the XTOOL D9S PRO Automotive Scan Tool with AutoAuth stands out as an ideal choice because of its extensive diagnostic and programming capabilities. It supports over 150 vehicle brands, including Ford, BMW, Mercedes-Benz, and Toyota, with advanced features like ECU programming, coding, and topology mapping. The tool offers bidirectional control, 45+ maintenance services, and offline module reprogramming. Its 9.7-inch touchscreen, wireless connectivity, and multi-language interface make diagnostics straightforward and efficient. Backed by 3-year updates and top-tier support, it’s a versatile, reliable device for complex repairs and system reboots.
- Protocol Support:DoIP, CAN FD, AutoAuth, OE protocols
- Screen Size:9.7-inch touchscreen
- Battery Capacity:6400 mAh
- Connectivity Type:Wireless & wired
- Operating System:Android 10
- Software Update Period:3 years
- Additional Feature:16 adapters included
- Additional Feature:Multi-language interface (23 languages)
- Additional Feature:9.7-inch touchscreen display
-
TOPDON Phoenix XLink Scan Tool, ECU Programming, Online ECU Coding, Upgraded of Phoenix Plus, Topology Mapping, 41 Services, Bi-Directional Scanner, Guided Function, CAN FD/DoIP, 2 Years Free Update
ESSENTIAL FOR 2024 PROFESSIONALS: The TOPDON Phoenix XLink stands out as an advanced ECU programming tool, enabling cloud-based...
As an affiliate, we earn on qualifying purchases.

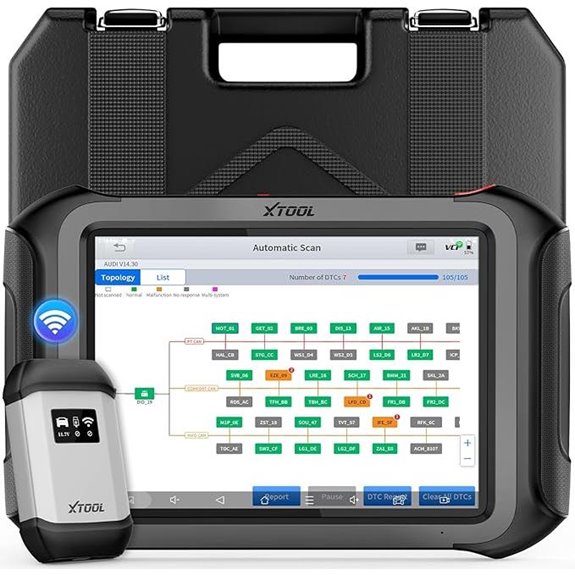

XTOOL D9 MAX Automotive Scan Tool with Reprogramming
The XTOOL D9 MAX Automotive Scan Tool with Reprogramming stands out as an ideal choice for professional technicians and repair shops that need advanced diagnostics and ECU programming capabilities. It supports ECU replacement, adaptive data matching, and blank ECU programming, notably reducing costs compared to OEM scanners. With features like J2534 reprogramming, topology mapping, and over 4,000 active tests, it handles complex repairs efficiently. Its 9.7-inch HD touchscreen, wireless connectivity, and fast data transmission streamline workflow. Plus, with 3 years of free updates and extensive support, the D9 MAX ensures reliable, professional-grade diagnostics for a wide range of vehicles.
- Protocol Support:FCA AutoAuth, DoIP, CAN FD, OE software
- Screen Size:9.7-inch touchscreen
- Battery Capacity:6400 mAh
- Connectivity Type:Wireless & wired
- Operating System:Android 10
- Software Update Period:3 years
- Additional Feature:Visual topology mapping
- Additional Feature:Wireless data transmission (20X)
- Additional Feature:PDF fault report sharing
-
XTOOL Scanner D8S, AI-Assisted Bidirectional OBD2 Scanner, 8" Full System Bidirectional Scan Tool, ECU C0ding, Topology Mapping, 42+ Resets Automotive Diagnostic Scanner, FCA, CAN FD&DoIP
2026 Upgraded Ver. of the XTOOL D8 Scanner: The XTOOL D8S OBD2 scanner diagnostic tool packs all essential...
As an affiliate, we earn on qualifying purchases.

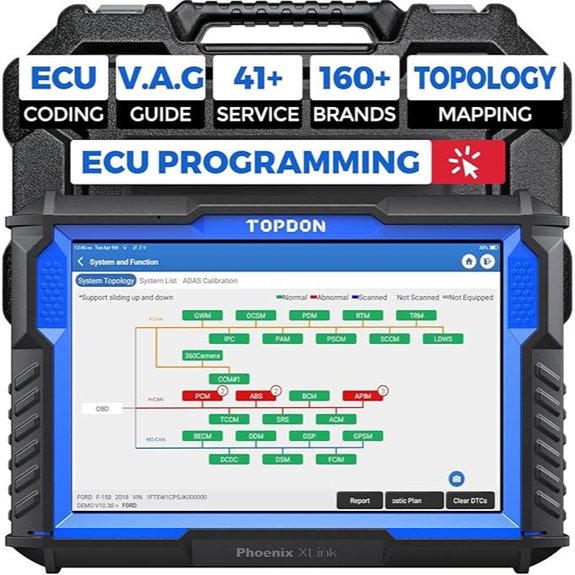

TOPDON Phoenix XLink Scan Tool with ECU Coding
Professionals seeking all-encompassing diagnostics and advanced ECU programming will find the TOPDON Phoenix XLink Scan Tool with ECU Coding to be an ideal choice, especially given its support for cloud-based ECU matching, replacement, and upgrades across a wide range of vehicle brands. It offers online ECU coding to reveal hidden features, customize settings, and boost performance. With compatibility for CAN FD/DoIP protocols, it guarantees fast data transfer and broad vehicle support. The device features a 10.1-inch display, 128GB storage, and a robust 12600mAh battery. Its comprehensive system coverage and advanced functions make it a versatile, professional-grade tool for modern automotive diagnostics and programming.
- Protocol Support:CAN FD, DoIP, OE protocols
- Screen Size:10.1-inch display
- Battery Capacity:12600 mAh
- Connectivity Type:Wired & wireless (Wi-Fi)
- Operating System:Android 10.0
- Software Update Period:2 years
- Additional Feature:Cloud-based ECU programming
- Additional Feature:19 connectors included
- Additional Feature:Thermal imaging capability

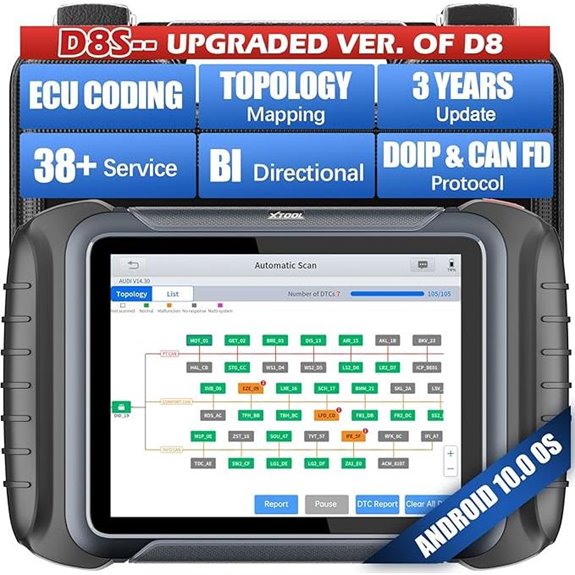

XTOOL D8S 2025 Bidirectional Car Diagnostic Scanner
Designed for auto technicians and serious enthusiasts, the XTOOL D8S 2025 Bidirectional Car Diagnostic Scanner stands out with its advanced hardware and extensive diagnostic capabilities. It runs on Android 10, with 4GB RAM, 64GB storage, and a quad-core 1.8GHz CPU—making it incredibly fast and responsive. Its topology mapping module adds immense value, supporting connection with XV200 endoscope and covering over 100,000 vehicle models. It offers thorough OE all-system diagnostics, active tests, and bi-directional control, enabling precise troubleshooting. With three years of software updates, multi-language support, and extensive vehicle compatibility, this scanner is a powerful tool for professional diagnostics and maintenance.
- Protocol Support:DoIP, CAN FD, protocols supported via hardware
- Screen Size:8-inch touchscreen
- Battery Capacity:5000 mAh fast-charging
- Connectivity Type:Wireless & wired
- Operating System:Android 10 OS
- Software Update Period:3 years
- Additional Feature:Topology mapping module
- Additional Feature:Supports over 100,000 models
- Additional Feature:Dual-frequency Wi-Fi (2.4G & 5G)

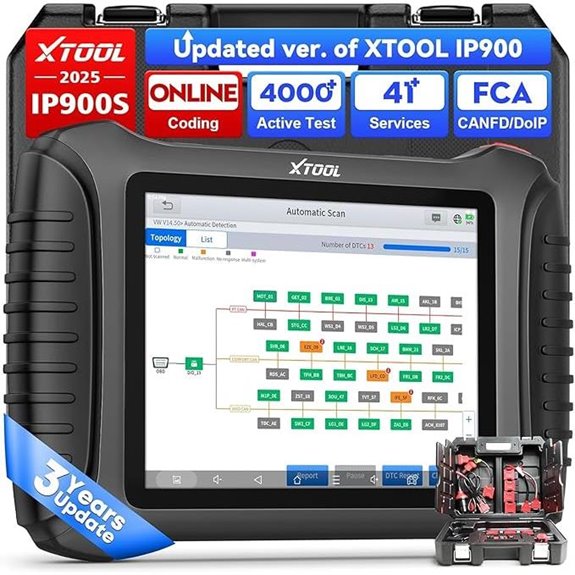

XTOOL IP900S All-System OBD2 Diagnostic Scanner
If you’re looking for an all-in-one diagnostic tool that offers extensive system access and advanced topology mapping, the XTOOL IP900S All-System OBD2 Diagnostic Scanner stands out. It visualizes vehicle networks, showing physical connections and communication paths between control units, which is invaluable for complex diagnostics. Supporting CAN-FD and DoIP protocols, it covers over 10,000 vehicles globally. Its upgraded hardware—quad-core CPU, 4G RAM, 64G storage, dual Wi-Fi, and a large touchscreen—ensures fast, reliable diagnostics. With features like bidirectional testing, over 4,000 active tests, and 41+ maintenance services, it provides exhaustive, professional diagnostics for almost all vehicle systems.
- Protocol Support:CAN FD, DoIP, FCA AutoAuth, OE protocols
- Screen Size:8-inch touchscreen
- Battery Capacity:6400 mAh
- Connectivity Type:Wireless & wired
- Operating System:Android 10.0
- Software Update Period:3 years
- Additional Feature:8-inch touchscreen
- Additional Feature:Supports multi-language (23+)
- Additional Feature:3-year free software updates

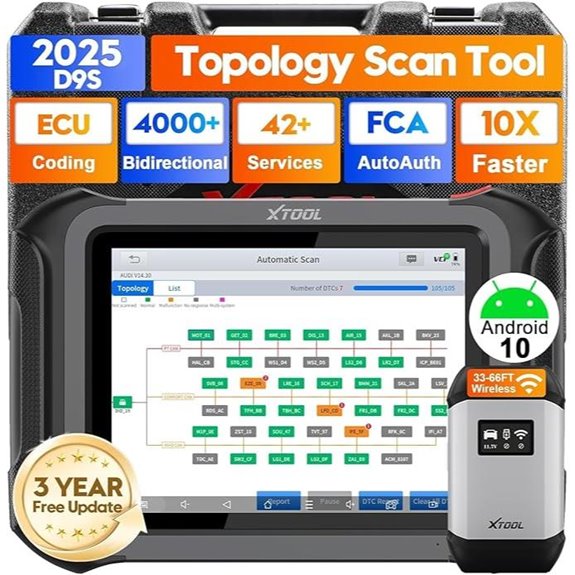

XTOOL D9S Automotive Scanner with AutoAuth & Resets
The XTOOL D9S Automotive Scanner with AutoAuth & Resets stands out as an ideal choice for experienced mechanics and auto enthusiasts who require extensive diagnostics and advanced features. Its 9.7-inch touchscreen, Android 10 OS, and powerful hardware deliver fast, dependable performance. Support for protocols like DoIP, CAN FD, and RP1210 ensures thorough coverage across over 10,000 vehicle makes. The scanner’s topology map, bi-directional controls, and support for over 45 reset functions make it perfect for complex repairs. Plus, FCA AutoAuth for Chrysler 2018+ models adds deeper access, while three years of free updates keep it current for professional use.
- Protocol Support:DoIP, CAN FD, OE protocols
- Screen Size:9.7-inch touchscreen
- Battery Capacity:6400 mAh
- Connectivity Type:Wireless & wired
- Operating System:Android 10
- Software Update Period:3 years
- Additional Feature:8MP camera for documentation
- Additional Feature:Non-OBD2 connectors included
- Additional Feature:Supports offline ECU programming

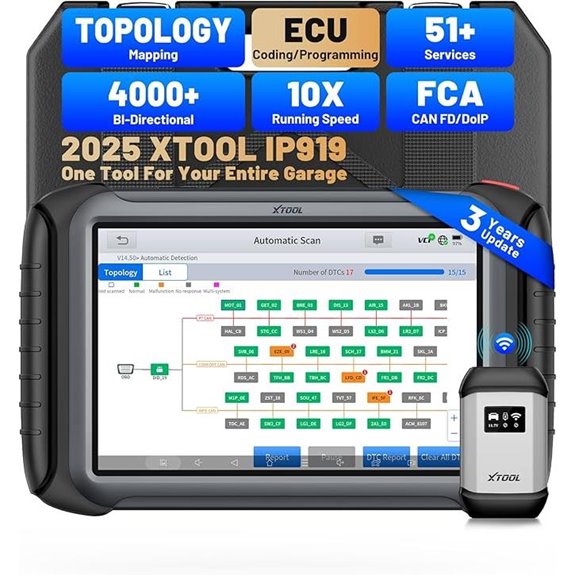

XTOOL IP919 Car Diagnostic Scanner with Resets
For professionals and serious DIYers who need all-encompassing reset functions, the XTOOL IP919 stands out with its extensive 51+ reset services, including ABS bleeding, SAS, BMS, oil, gearbox, sunroof, and suspension resets. This high-end scanner supports over 100,000 vehicle models after 1996 and offers advanced features like topology mapping, ECU coding, and live data graphing. Its powerful hardware, 10.1-inch sunlight-readable screen, and Wi-Fi connectivity ensure quick, accurate diagnostics. With dealership-level capabilities and free software updates for three years, the IP919 makes complex repairs more straightforward and efficient.
- Protocol Support:CAN FD, DoIP, FCA AutoAuth, OE protocols
- Screen Size:10.1-inch sunlight-readable touchscreen
- Battery Capacity:12600 mAh
- Connectivity Type:Wi-Fi & wired
- Operating System:Android 10.0
- Software Update Period:2 years
- Additional Feature:Auto VIN detection
- Additional Feature:Support for heavy-duty vehicles
- Additional Feature:8-inch sunlight-readable screen

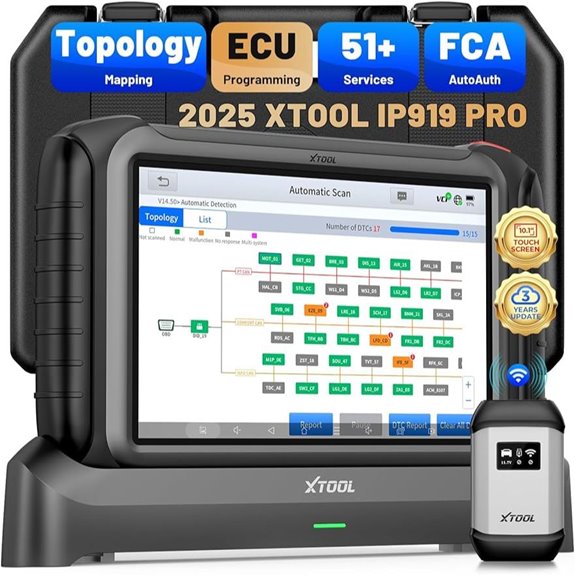

XTOOL IP919 PRO Car OBD2 ECU Scanner
Looking for an OBD2 scanner that can handle advanced diagnostics and ECU programming with ease? The XTOOL IP919 PRO is a professional-grade tool that supports over 100,000 vehicle models from 1996 onward, including FCA, CAN FD, and DoIP protocols. It offers dealership-level functions like ECU coding, reprogramming, and parameter matching, with online and offline capabilities for brands like BMW, Benz, Ford, and more. Its topology mapping, bidirectional control, and 51+ reset services simplify complex repairs. Powered by Android 10.0 with a bright 10.1-inch touchscreen, it delivers fast, reliable diagnostics and user-friendly operation, making it ideal for professionals and advanced DIYers.
- Protocol Support:CAN FD, DoIP, FCA AutoAuth, OE protocols
- Screen Size:10.1-inch sunlight-readable touchscreen
- Battery Capacity:6400 mAh
- Connectivity Type:Wi-Fi & wired
- Operating System:Android 10.0
- Software Update Period:3 years
- Additional Feature:10.1-inch high-res display
- Additional Feature:Supports module matching
- Additional Feature:Supports ECU flashing

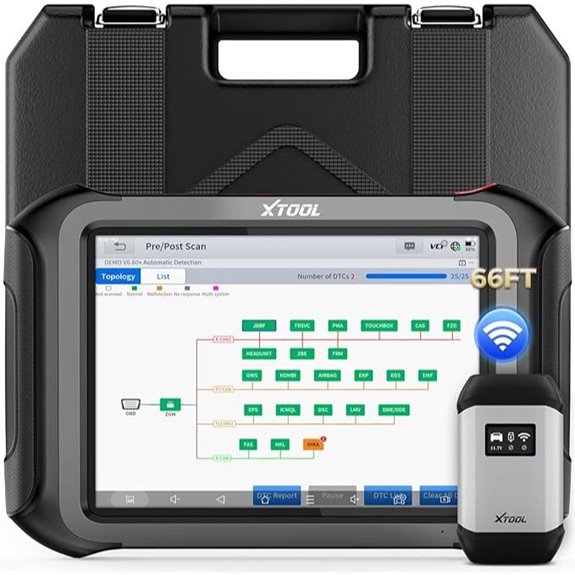

XTOOL D9 MAX Automotive Diagnostic Scanner
If you’re a professional mechanic or serious DIY enthusiast seeking advanced diagnostics, the XTOOL D9 MAX Automotive Diagnostic Scanner stands out with its innovative topology mapping feature. This tool offers complete-system diagnostics across 99% of global vehicle brands, including modules like ABS, SRS, BCM, and ADAS. Its topology mapping visually displays communication between modules, quickly pinpointing faults and reducing diagnostic time by up to 90%. Coupled with features like ECU reprogramming, service resets, live data visualization, and a durable wireless design, the D9 MAX provides extensive, efficient, and user-friendly diagnostics for modern vehicles. It’s an essential upgrade for any serious workshop or enthusiast.
- Protocol Support:CAN FD, DoIP, FCA AutoAuth, OE protocols
- Screen Size:10.1-inch LCD touchscreen
- Battery Capacity:6400 mAh
- Connectivity Type:Wi-Fi & wired
- Operating System:Android 10.0
- Software Update Period:3 years
- Additional Feature:Topology map visualization
- Additional Feature:Over 4000 active tests
- Additional Feature:Supports vehicle customization

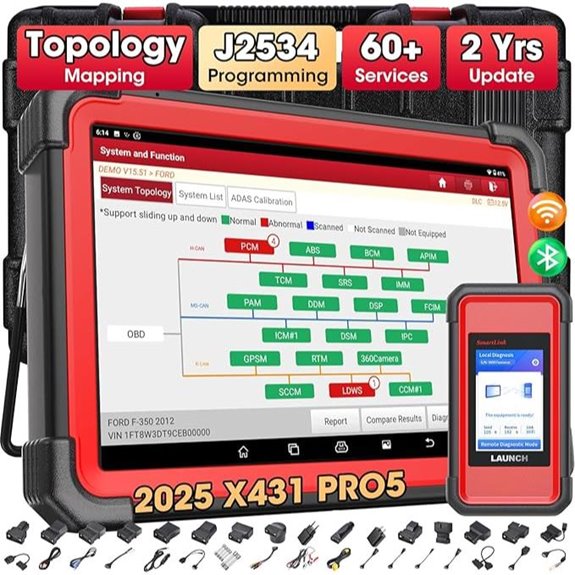

LAUNCH X431 PRO5 J2534 Diagnostic Scanner
The LAUNCH X431 PRO5 J2534 Diagnostic Scanner stands out with its advanced ECU tuning capabilities, making it an ideal choice for both professional technicians and dedicated DIY enthusiasts who want more than just basic diagnostics. It offers thorough system scans across multiple vehicle brands, quickly detects and clears DTCs, and supports bidirectional control for active tests. Its topology mapping enhances understanding of vehicle systems, boosting troubleshooting efficiency. With extensive coverage for post-1996 models, online diagnostics, and regular free updates, PRO5 guarantees access to the latest data. Its J2534 support facilitates ECU software upgrades, coding, and recoding, enabling personalized vehicle tuning and optimization.
- Protocol Support:CAN FD, DoIP, FCA AutoAuth, OE protocols
- Screen Size:10.1-inch HD touchscreen
- Battery Capacity:6400 mAh
- Connectivity Type:Wi-Fi & wired
- Operating System:Android 10.0
- Software Update Period:3 years
- Additional Feature:25+ supported languages
- Additional Feature:Online diagnostics supported
- Additional Feature:60+ service functions

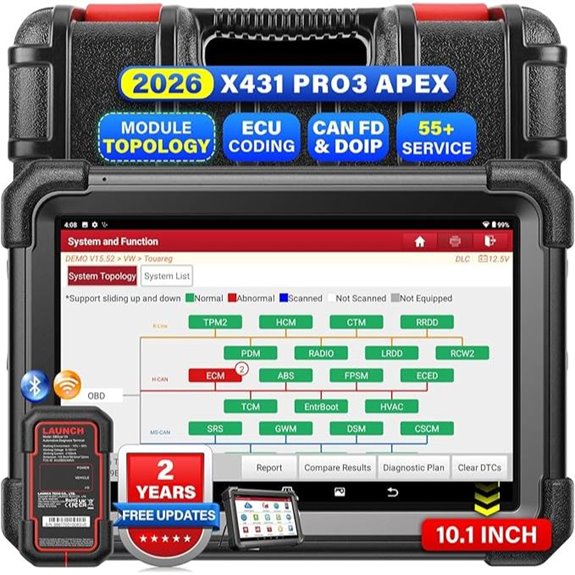

Launch X431 PRO3 APEX OBD2 Scanner with 10.1″ Screen
With a large 10.1-inch screen and an advanced Android 10.0 OS, the Launch X431 PRO3 APEX stands out as the ideal choice for professional technicians who demand fast, thorough diagnostics. Powered by a 2.0GHz quad-core CPU and 4+64GB memory, it supports multitasking and rapid repairs. It offers dealer-level diagnostics across all vehicle systems, including live data, active testing, ECU coding, and topology mapping that visually displays ECU statuses and faults. Supporting over 10,000 vehicle models globally, it’s equipped with WiFi, CAN FD, DoIP, and wireless remote diagnosis. Its extensive features streamline repairs, making it a top-tier tool for any serious repair shop.
- Protocol Support:CAN FD, DoIP, OE protocols
- Screen Size:10.1-inch LCD touchscreen
- Battery Capacity:12600 mAh
- Connectivity Type:Wireless & wired
- Operating System:Android 10.0
- Software Update Period:3 years
- Additional Feature:12.9” large screen
- Additional Feature:Online/offline ECU coding
- Additional Feature:55+ service functions

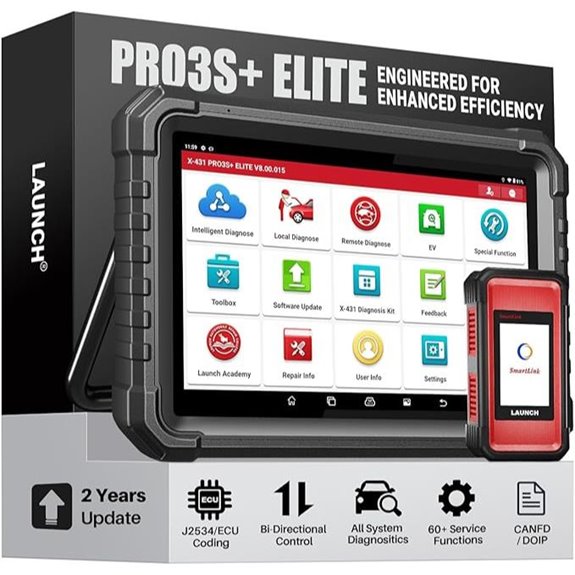

LAUNCH X431 PRO3S+ Elite Diagnostic Scan Tool
As a professional mechanic or advanced DIYer seeking all-encompassing vehicle diagnostics, the LAUNCH X431 PRO3S+ Elite stands out thanks to its powerful topology mapping and bidirectional control capabilities. It supports over 4000 active tests, allowing me to control components like fuel pumps and injectors for quick verification. Its intuitive topology map visually displays all vehicle systems with color indicators, speeding up fault detection. With flagship hardware—Android 10.0, a fast processor, and a 10.1-inch touchscreen—it offers seamless navigation. Its compatibility with numerous protocols and extensive service functions makes it a versatile tool for complex diagnostics and dealer-level repairs.
- Protocol Support:CAN FD, DoIP, OE protocols
- Screen Size:10.1-inch LCD touchscreen
- Battery Capacity:12600 mAh
- Connectivity Type:Wi-Fi & wired
- Operating System:Android 10.0
- Software Update Period:2 years
- Additional Feature:16MP front camera
- Additional Feature:Dual-band WiFi (2.4G/5G)
- Additional Feature:Supports heavy-duty trucks
VDIAGTOOL VD80 BT Car Diagnostic Scanner (8″)
Are you searching for an efficient diagnostic tool that combines advanced features with user-friendly design? The VDIAGTOOL VD80 BT Car Diagnostic Scanner delivers just that. It offers over 4,000 active tests, hot services, and supports OE-level diagnostics for full-system analysis, including ABS, SRS, ECM, and TCM. With support for more than 10,000 vehicle models worldwide and protocols like CAN FD and DoIP, it’s versatile. The 8″ HD screen, wireless connectivity, and extensive storage make it easy to operate. Plus, its intuitive topology mapping reduces diagnostic time by up to 50%, making it perfect for professionals and DIYers alike.
- Protocol Support:CAN FD, DoIP, FCA AutoAuth, OE protocols
- Screen Size:8-inch HD touchscreen
- Battery Capacity:6400 mAh
- Connectivity Type:Wireless & wired
- Operating System:Android 10.0
- Software Update Period:3 years
- Additional Feature:8″ HD display
- Additional Feature:Wireless range 33–66ft
- Additional Feature:Supports advanced ECU coding

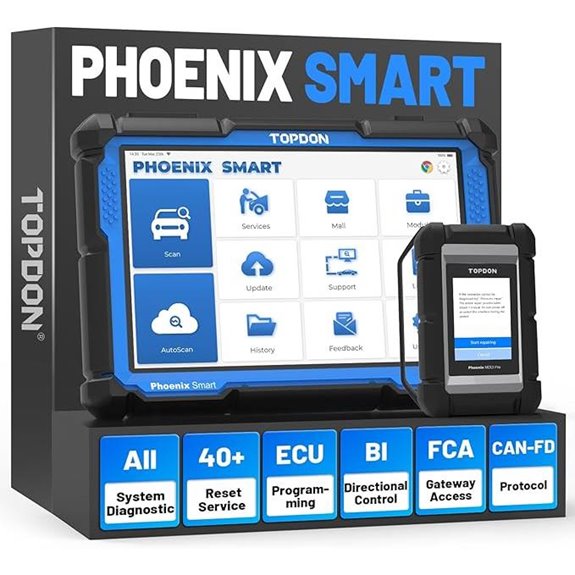

TOPDON Phoenix OBD2 Scanner with ECU & ADAS Compatibility
The TOPDON Phoenix OBD2 Scanner stands out as an ideal choice for professional technicians and workshops seeking extensive vehicle diagnostics and calibration capabilities. It supports ECU programming, coding, and full-system diagnostics across over 200 vehicle brands and protocols, including DoIP, CAN-FD, and D-PDU. Its large 10.1” touchscreen, Android 10.0 OS, and powerful processor make navigation effortless. With features like bidirectional control, 18+ languages, and 41+ service functions—such as oil resets, TPMS, and DPF regeneration—it’s perfect for all-encompassing repairs. Additionally, its expandability with optional modules and two-year free updates keeps it relevant for modern vehicle maintenance.
- Protocol Support:DoIP, CAN FD, OE protocols
- Screen Size:10.1-inch LCD touchscreen
- Battery Capacity:12600 mAh
- Connectivity Type:Wi-Fi & wired
- Operating System:Android 10.0
- Software Update Period:2 years
- Additional Feature:Supports ADAS calibration
- Additional Feature:Add-on modules available
- Additional Feature:12600mAh long-life battery
Autel MaxiSys Ultra Scanner with MV108 & VCMI
For professional auto repair shops seeking all-encompassing diagnosis and advanced topology mapping, the Autel MaxiSys Ultra Scanner with MV108 and VCMI stands out as a top-tier choice. It features a powerful 12.9″ touchscreen, Android 7.0 OS, and fast processors, ensuring smooth operation. With extensive vehicle coverage (99.99%), it supports OE-level Topology Map 2.0, fault diagnosis, DTC analysis, and repair tips. The included 5-in-1 VCMI combines VCI, oscilloscope, waveform generator, multimeter, and CAN Bus check for precise diagnostics on 99% of vehicles. This robust setup makes it ideal for large workshops demanding comprehensive, efficient repair solutions.
- Protocol Support:CAN FD, DoIP, OE protocols
- Screen Size:12.9-inch TFT-LCD
- Battery Capacity:18000 mAh
- Connectivity Type:Wi-Fi & wired
- Operating System:Android 7.0 / Android 10 (depending on model)
- Software Update Period:3 years
- Additional Feature:12.9″ TFT-LCD screen
- Additional Feature:40+ services supported
- Additional Feature:Remote expert troubleshooting
Factors to Consider When Choosing an OBD2 Scanner With Topology Mapping
When selecting an OBD2 scanner with topology mapping, I focus on compatibility with my vehicle to verify it works seamlessly. I also consider the depth of diagnostic coverage and how user-friendly the software is, so I can get accurate insights without frustration. Ultimately, I look at update frequency and mapping features to keep my diagnostics current and detailed.
Compatibility With Vehicles
Choosing an OBD2 scanner with topology mapping starts with guaranteeing it’s compatible with your vehicle. First, check that the scanner supports your vehicle’s protocols, like CAN FD, DoIP, or FCA AutoAuth, to guarantee proper communication. Make sure it can automatically read vehicle identification numbers (VINs), allowing quick recognition across different makes and models. It’s also important to verify that the scanner supports a wide range of brands, including both domestic and imported vehicles from various years. Additionally, confirm that the topology mapping feature can visualize the specific network architecture of your vehicle’s make and model. Finally, review the manufacturer’s compatibility list or verification process to ensure the scanner can diagnose and service your vehicle before making a purchase.
Diagnostic Coverage Extent
Making certain your OBD2 scanner offers broad diagnostic coverage is key to getting accurate and all-encompassing vehicle insights. A comprehensive scanner should support diagnostics across multiple modules like ECM, TCM, ABS, SRS, BCM, and BMS, providing a full picture of your vehicle’s health. It must handle both standard OBD2 functions and advanced protocols like CAN FD, DoIP, and FCA AutoAuth to ensure compatibility with a wide range of vehicle makes and models. The extent of coverage is demonstrated through active tests, system scans, and fault detection on over 10,000 models worldwide. Additionally, detailed fault reports and live data from all relevant modules help streamline troubleshooting and repairs, reducing the need for multiple tools and making diagnostics more efficient.
Topology Mapping Features
Topology mapping features are essential tools that visually represent how vehicle control modules communicate within the electronic system. They show the network connections, helping me quickly identify issues like broken links or malfunctioning modules. Color-coded diagrams make it easy to distinguish active, inactive, or faulty communication paths, saving time during diagnostics. Advanced features often include interactive maps, allowing me to drill down into specific modules for detailed troubleshooting. The accuracy of these maps depends on the scanner’s protocol support, such as CAN FD or DoIP, and its ability to read real-time communication data. When choosing a scanner, I look for detailed topology mapping that offers clear, real-time visualizations and interactive capabilities to streamline complex diagnostics and improve troubleshooting efficiency.
Software Update Frequency
Regular software updates are essential for keeping an OBD2 scanner compatible with new vehicle models and diagnostic protocols. I look for devices that offer free updates for at least 2-3 years, so I can access new features and expanded vehicle coverage without extra costs. Frequent updates also address bugs, security issues, and improve topology mapping accuracy, boosting diagnostic reliability. I prefer scanners with automatic or one-touch Wi-Fi updates, which make staying current quick and effortless. Checking how often a scanner’s software is updated before buying helps ensure it remains useful and relevant as automotive technology evolves rapidly. Ultimately, a device with a reliable update schedule saves me time and keeps my diagnostics accurate and up-to-date.
User Interface Ease
Choosing an OBD2 scanner with topology mapping becomes much easier when the user interface is intuitive and easy to navigate. A clear menu structure and recognizable icons help me quickly find functions, reducing the time I spend troubleshooting. A large, high-resolution screen makes reading diagrams, menus, and diagnostic data simple, even in bright conditions. Touchscreen responsiveness and multi-touch gestures allow me to access functions and system maps smoothly without delays. When the interface is logically organized and offers step-by-step guidance, complex diagnostic procedures become much more manageable. Additionally, multilingual support ensures I can operate the scanner comfortably, regardless of my language background. Overall, an accessible UI enhances efficiency, making diagnostics less frustrating and more straightforward.
Connectivity Options
When selecting an OBD2 scanner with topology mapping, connectivity options play a vital role in ensuring smooth and versatile operation. I look for devices that support both wireless (Wi-Fi or Bluetooth) and wired (USB or Ethernet) connections, offering flexibility in different environments. Dual-band Wi-Fi (2.4GHz and 5GHz) is essential for faster data transfer and a more stable connection. Compatibility with protocols like DoIP, CAN FD, and D-PDU guarantees seamless communication across vehicle networks. Remote connectivity features, such as extended range up to 100 feet, allow me to move freely around the vehicle. Additionally, multiple ports or adapters improve compatibility with various makes and models, enhancing the scanner’s topology mapping capabilities and overall functionality.
Reprogramming Capabilities
Reprogramming capabilities are essential because they enable you to update or modify your vehicle’s control modules, which can enhance performance or reveal hidden features. Advanced OBD2 scanners with reprogramming support can perform ECU flashing, module coding, and parameter adjustments without extra tools. Compatibility with protocols like J2534, DoIP, or CAN FD is critical for guaranteeing successful reprogramming across various car brands and models. These functions often require an internet connection for downloading software updates and accessing manufacturer-specific files. Proper reprogramming can reduce dealership visits, save labor costs, and fix system errors caused by outdated firmware or software corruption. Choosing a scanner with solid reprogramming capabilities ensures you have the tools to optimize your vehicle’s performance and functionality effectively.
Device Durability
Since OBD2 scanners with topology mapping are often used in demanding environments, their durability is a critical factor to contemplate. I look for devices built with rugged materials like reinforced plastics or metal casings, which can withstand drops and impacts. Water-resistant or sealed enclosures are essential to protect against dust, moisture, and spills, especially in outdoor or workshop settings. Devices with reinforced screens and shock-absorbing edges offer added protection during frequent handling. Long-lasting hardware, such as rechargeable batteries with high cycle counts, ensures reliable performance over time. Certifications like IP ratings give me confidence in a scanner’s resistance to dust and water, extending its lifespan in tough conditions. Prioritizing durability helps me avoid costly replacements and keeps my diagnostic work seamless.
Frequently Asked Questions
How Does Topology Mapping Improve Diagnostic Accuracy?
Topology mapping enhances diagnostic accuracy by providing a visual representation of a vehicle’s entire sensor network and electronic systems. I can quickly identify faults and pinpoint problematic components because I see how everything connects and interacts. This all-encompassing view reduces guesswork, speeds up troubleshooting, and helps me make precise repairs. Overall, topology mapping makes diagnostics more efficient, accurate, and less prone to errors.
Are These Scanners Compatible With All Vehicle Makes and Models?
Yes, most of these scanners are compatible with a wide range of vehicle makes and models. I’ve found that top-tier scanners support both domestic and import vehicles, including recent models. However, it’s always a good idea to double-check the product specifications or compatibility list before purchasing. This way, you guarantee the scanner will work seamlessly with your specific vehicle, saving you time and frustration.
What Is the Typical Learning Curve for Using Advanced Topology Features?
About 70% of users find advanced topology features intuitive after a few hours of hands-on practice. I’d say the learning curve isn’t steep; most people get comfortable within a day or two. The key is exploring the interface slowly and referencing the manual as needed. Once you grasp the basics, managing complex maps becomes much easier, making these tools invaluable for diagnosing intricate vehicle issues efficiently.
Can These Scanners Diagnose Both Engine and Non-Engine Systems?
Yes, these scanners can diagnose both engine and non-engine systems. I’ve used them to check everything from ABS brakes and airbags to transmission and fuel systems. Their advanced features let me access detailed data across multiple vehicle systems, making troubleshooting more thorough. With these tools, I feel confident tackling complex issues, knowing I can get insights beyond just the engine, which really broadens diagnostic capabilities.
Do These Devices Require Internet Connectivity for Topology Mapping?
No, these devices don’t need internet connectivity for topology mapping. I found that most scanners rely on their internal databases and Bluetooth or Wi-Fi connections to visualize the vehicle’s systems. notably, while some features might update via the internet, the core topology mapping works offline, giving you quick and reliable diagnostics even in areas with no signal. It’s pretty impressive how self-sufficient these tools have become.
Conclusion
If you’re like me, finding the right OBD2 scanner can feel overwhelming, but knowing your needs makes all the difference. For instance, I once used the XTOOL D9S PRO to diagnose a stubborn engine issue, saving me a trip to the mechanic. Whether you prioritize topology mapping or advanced features, choosing the right tool can empower you to tackle problems confidently. Invest wisely, and you’ll keep your vehicle running smoothly for years to come.
